HOOHA High Precision Wire Testing Equipment ZY6315 Bending Rotary White

Product Categories
Dongguan HOOHA Electrical Equipment Company Limited
Contact Now

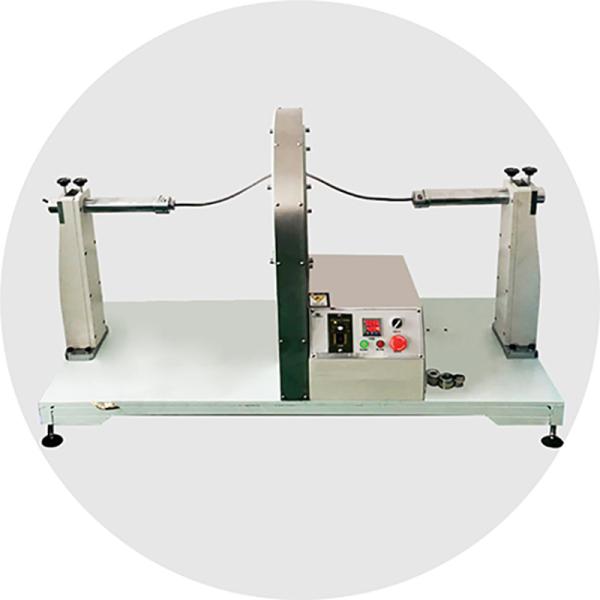

HOOHA High Precision Wire Testing Equipment ZY6315 Bending Rotary White

Brand Name : HOOHA

Model Number : ZY6315

Certification : Compliance with JIS c3005-2000, 4.27.1. A) standard requirements; Japanese cable enterprise standard cable robots "test" standard requirements; Conform to the standard requirements of TUV lane 2 PFG 2577/08.16 appendix C

Place of Origin : China

MOQ : 1

Supply Ability : 10 sets/month

Delivery Time : 30 work days

Packaging Details : wood package

Price : 3000-80000USD/PC

Payment Terms : L/C, T/T, Western Union

color : white

Adopt standard 1 : JIS c3005-2000, 4.27.1. A

Adopt standard 2 : TUV lane 2 PFG 2577/08.16

Test length : about 1.5m

Jig spacing : 50~500mm adjustable

Bending radius r : 100mm, 150mm

Test speed : 50r.p.m

Counter : 0~9999999 times

Contact Now

HOOHA High Precision Wire Testing Equipment ZY6315 Bending Rotary White

Scope of application:

Suitable for high flexible cable test for TUV, VDE and JIS. Will be 1.5 m long samples in accordance with the requirements of the degree of finish is throughout the round hole, and regulations in the adjusted the spacing of the fixture, roulette, 360 ° continuous circular operation, rotate it 200 times, check sample damage, crack, crack and conductor of strand break line rate. Can also be applied to GB/T4909.5-2009 standard of the diameter of the metal wire, do 90 ° reverse bend test positive and negative direction.

Meet the standard:

Compliance with JIS c3005-2000, 4.27.1. A) standard requirements;

Japanese cable enterprise standard cable robots "test" standard requirements;

Conform to the standard requirements of TUV lane 2 PFG 2577/08.16 appendix C

Main parameters:

Test length: about 1.5m

Jig spacing: 50~500mm adjustable

Bending radius r: 100mm, 150mm

Test Angle: 360 ° circumferential continuously running

Test speed: 50r.p.m

Counter: 0~9999999 times

Machine power: 1/2hp

Volume: H650mm D650 W1000 * *

Weight: about 150kg

Power: AC220V, 50Hz, 3A
