Single Twist Machine For Multiple Power Cable With PLC Electric Control System

Product Categories

Dongguan HOOHA Electrical Equipment Company Limited

Contact Now

Single Twist Machine For Multiple Power Cable With PLC Electric Control System

Name: Single Twist Machine For Multiple Power Cable With PLC Electric Control System
Brand: HOOHA
Price: 1 USD

Single Twist Machine For Multiple Power Cable With PLC Electric Control System Manufactures

Brand Name : HOOHA

Model Number : HH-800/1000/1250

Certification : CCC,UL,RoHS, ISO,CE

Place of Origin : Dongguan,China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 sets per month

Delivery Time : 40 working days

Packaging Details : Plastic Packing

Drive : Automatic

Color : Customized

Model : HH-800/1000/1250

Single Wire Diameter : 0.8-3.0

Max Stranding Diameter : 20mm

Speed : 600 -1000 rpm

Applicable Wire : Insulation wire & sheath cable

Market : Turkey,Syria, Russia,UZ etc

export year : since 2008

technical team : flexible to oversea

Contact Now

Cantilever Single Twist Machine For Multiple Power Cable

cable stranding machine -cantilever twist machine application

The machine mainly apply to multiple cabling of data cable, HDMI wire cable, power cable, naked copper wire(fine wire), shielding layer cable, control cable etc.

machine devices

Cantilever twist machine , PLC electric control system, Center wrapping machine, side-way giving wrap and wire collection device , pay off stand

Technical Parameter

Machine model	HH-800	HH-1000	HH-1250
Single wire OD	φ0.8-φ3.0mm	Φ1.0-φ5.0mm	Φ1.0-φ5.0
Max stranding OD	Φ20mm	Φ25mm	Φ30mm
Traverse pitch	3-30mm	3-30mm	3-35mm
Speed	Max600rpm	Max500rpm	Max450rpm
Twisting pitch	20-300mm	20-400mm	30-500mm
Pay-off bobbin size	Φ500-φ630mm	Φ500-630mm	Φ500-φ630mm
Take-up bobbin size	Φ800mm	Φ1000mm	Φ1250mm

After-sales Service

1).Delivery dates:45 days
2).Payment:TT or L/C
3).Packing: plastic packing to ensure the goods' safety during the transportation.
4).Install and training service:2 professional engineers who has over 5 years overseas installation and cable manufacturing training experience.

Single Twist Machine For Multiple Power Cable With PLC Electric Control System

Product Tags:

wire stranding machine

tubular stranding machine

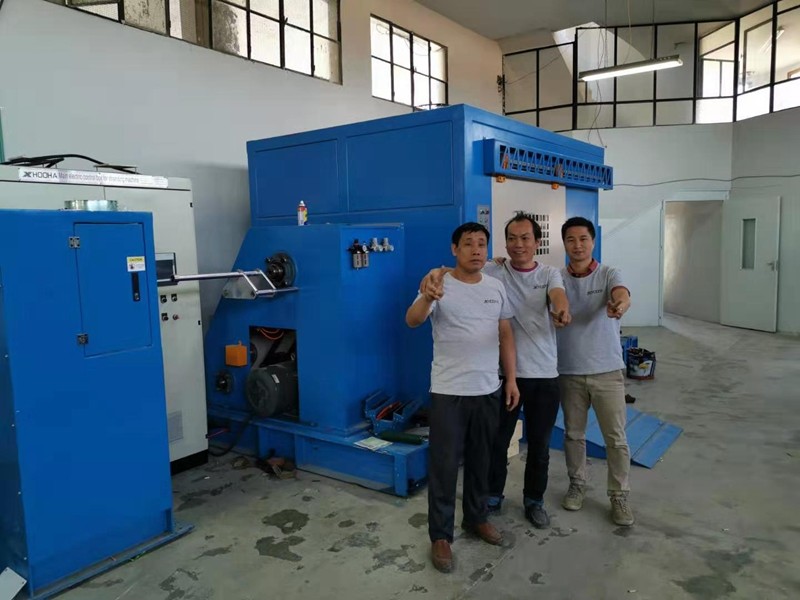

Single Twist Machine For Multiple Power Cable With PLC Electric Control System Images
