Home > Wire Twisting Machine >

High Speed Bow Stranding Machine For 10mm²-25mm² Copper Wire

Product Categories

Dongguan HOOHA Electrical Equipment Company Limited

Contact Now

High Speed Bow Stranding Machine For 10mm²-25mm² Copper Wire

Name: High Speed Bow Stranding Machine For 10mm25mm Copper Wire
Brand: HOOHA
Price: 1 USD

High Speed Bow Stranding Machine For 10mm²-25mm² Copper Wire Manufactures

Brand Name : HOOHA

Model Number : HH-1000

Certification : CCC,UL,RoHS, ISO,CE

Place of Origin : Dongguan,China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 sets per month

Delivery Time : 40 working days

Packaging Details : Plastic Packing

Color : Customized

Finished Stranded Wire/Max.(mm) : 8.0

Main Motor : 40HP DC Motor

Max.RPM : 800rpm(1600tpm/min.)

Stranding Sectional Area : 1.2-38.0(Max)

Application : Copper core wires

Contact Now

High Speed Bow Stranding Machine Used for 10mm²-25mm² Copper Wires

Application

Apply to the hard and soft copper or aluminum stranded,KVV, RVV or cabled telephone wire of more than 4 pairs core wire

Technical Parameter

Machine Type	HH-1000	HH-1250
Finished stranded wire/Max.(mm)	φ8.0	φ15.0
Stranding sec. area(mm²)	1.2-38.0(Max.)	3.5-50.0(Max.)
Insulated wire individual(mm)	1.0-2.5(Max.)	1.0-3.5(Max.)
Max.RPM	800rpm(1600tpm/min.)	600rpm(1200tpm/min.)
Main Motor	40HP DC Motor	50HP DC Motor
Control system	Parameder controlled by touch an LCD
Bobbin model	Motor-driven, fixed position
Weight(kgs)	9500	11000

Product Details:

High Speed Bow Stranding Machine For 10mm²-25mm² Copper Wire

After-sales Service

1).Delivery dates:45 days
2).Payment:TT or L/C
3).Packing: plastic packing to ensure the goods' safety during the transportation.
4).Install and training service:2 professional engineers who has over 5 years overseas installation and cable manufacturing training experience.

Product Tags:

cable twisting machine

twist wire machine

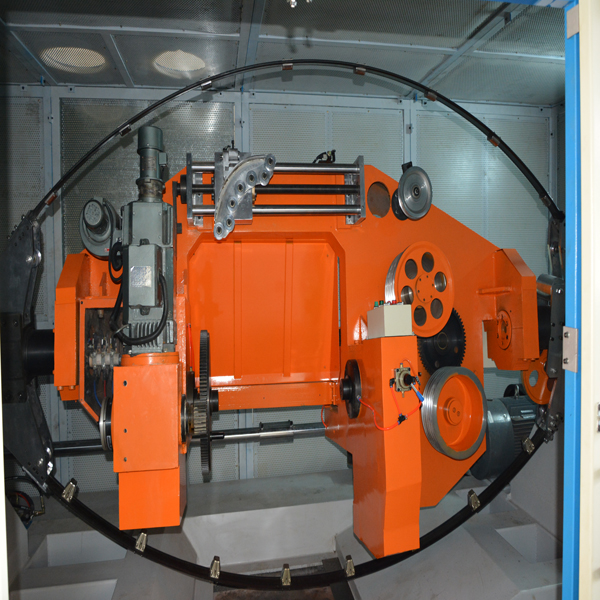

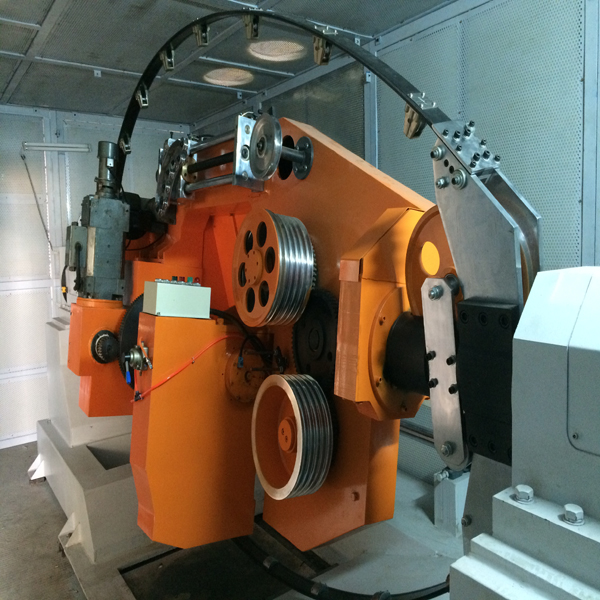

High Speed Bow Stranding Machine For 10mm²-25mm² Copper Wire Images
