0.5 Mm2 Copper Wire And Cable Extrusion Machine With Mitsubishi Belt

Brand Name : HOOHA

Model Number : 80+35/50

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 units per month

Delivery Time : 25 working days

Packaging Details : PE foam ,wooden package

flexible wire : 1,2,3 4 cores

material : PVC

copper wire : 0.5 mm2 , 0.75 mm2 , 1.5 mm2 , 2.5mm2

application : power cable

market : Algeria

voltage : 380v

electricity brand : Siemens

workers for the production line : 2

machine weight : 4000 KG

technician : install , training , debug , manufacturing

factory started : 1000

engineer teams : 30 years , 35 years , 20 years

sales can operate machine : yes

algeria market : 9 years exported

Contact Now

Turn-key Service With Team On Cable Manuacture , Wire And Cable Extrusion Machine

Application :

Suit for PVC ,PE plastic insulation & sheath , maily used in fire alam cable , electrical wire , house wire , data cable , network cable , building cable etc

machine devices as reference

1. pay off stand
2. Dancer / straigter
3. 80mm extrusion machine
4. Automated loader & dryer
5. Auto central Crosshead
6. Single /Double layer Moving trough
7. Main cooling trough
8. Water wiper
9. Digital diameter controller
10. Mark printer( selectable )
11. Accumulator
12. Capstan
13.15KV Spark tester
14. Meter counter

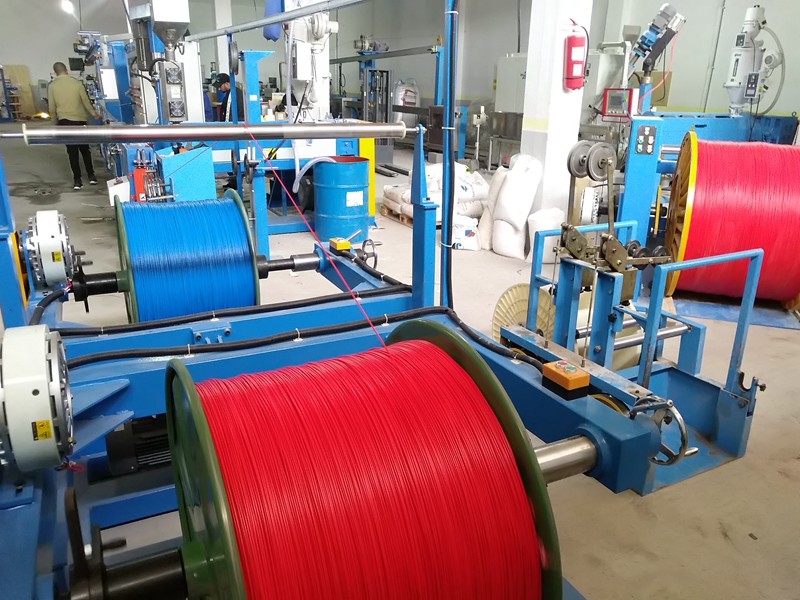

15. Dual shaft type Take up
16. Master control cabinet

18.35mm strip extruder machine / 50 extrusion machine (co-extrude)

3. MAIN PARTS BRAND


1. Motor: Siemens
2. Inverter: Germany-Siemens or YASKAWA Japan
3. Electric equipment: Siemens and Omron
4. Bearing: NSK from Japan
5. Belt: Mitsubishi

HOOHA-extrusion line
NO Model Screw Main Extruder Output Main extruder Motor Power Co-Extruder Output Co -extruder
Motor Power
Dia L/D Rotation
(mm) Ratio Speed
(r/min) (kg/h) (kw) (kg/h) (kw)
1 30 30 25 40~100 10~12 7.5 0 0
2 50 50 26 40~100 60~70 15 0 0
3 50+ 50 26 40~100 60~70 15 10~12 3.7
4 65 65 26 40~100 80~100 22 0 0
5 70+35 70 26 40~100 110~130 30 10~12 3.7
6 70+40 70 26 40~100 110~130 30 30~40 11
7 80 80 26 40~100 180~200 37 0 0
8 80+40 80 26 40~100 180~200 37 30~40 7.5
9 80+50 80 26 40~100 180~200 37 60~70 11.25
10 90 90 26 30~90 240~260 55 0 0
11 90+50 90 26 30~90 240~260 55 30~40 7.5
12 100 100 26 30~90 390 55 0 0
13 120 120 26 30~90 640 90 0 0
14 150 150 26 30~90 860 110 0 0
NO Product size Crosshead Heating Zones of cylinder
Line Speed
(mm) (m/min) (kw)
1 0.15~0.80 0.2~1.0 10~600 Fixed Single 4/6(U7) 4 zone 2.4kw
2 0.5~4.0 0.8~5.0 10~600 Fixed Single 4/6(U7) 4 z * 2.4kw
3 0.5~4.0 0.8~5.0 10~600 Fixed Single+ stripe 4/6(U7) 4 z * 2.4kw
4 1.0~10 2.0~12 10~600 Fixed /manual Single U7~U14 4 z * 3.0kw
5 1.6~12 2.0~15 10~700 Fixed /manual Single+ stripe U7~U14 5 z * 4.0kw
6 1.6~12 2.0~15 10~700 Fixed /manual Single+ stripe/skin U7~U14 5 z * 4.0kw
7 2.0~20 3.0~25 10~700 Fixed /manual Single Manual centering 5 z * 3.6kw
8 2.0~20 3.0~25 10~700 Fixed /manual Single+ stripe/skin Manual centering 5 z * 3.6kw
9 2.0~20 3.0~25 10~700 Fixed /manual Single+ stripe/skin Manual centering 5 z * 3.6kw
10 5.0~35 9~30 10~700 Fixed /manual Single Manual centering 5 z * 4.5kw
11 5.0~35 10~33 10~700 Fixed /manual Single+skin Manual centering 5 z * 4.5kw
12 4.0~30 5.0~50 10~220 manual Single Manual centering 5 z * 4.5kw
13 4.0~30 10~80 10~150 manual Single Manual centering 5 z * 4.5kw
14 4.0~30 15~120 10~100 manual Single Manual centering 5 z * 4.5kw
HOOHA-extrusion line
NO Model Pay off Tension Controller Cooling trough Capstan / Caterpillar
1st Cooling 2nd Cooling
Bobbin Power wheel Power
Dia. Dia.
(mm) (kw) (mm) (kw) (m) (m)
1 30 300~400 4 300 2.5kg.m 1.5 4m single Capstan
2 50 400~630 7.5 400 5.0kg.m 1.5 4m*2 double Capstan
3 50+ 400~630 7.5 400 5.0kg.m 1.5 4m*2 double Capstan
4 65 500~630 7.5 400 5.0kg.m 1.5 6m*2 double Capstan
5 70+35 500~630 7.5 400 5.0kg.m 1.5 6m*2 double Capstan
6 70+40 500~630 7.5 400 5.0kg.m 1.5 6m*2 double Capstan
7 80 630~800 7.5 500 10kg.m 1.5 6m*2 double Capstan
8 80+40 630~800 7.5 500 10kg.m 2 6m*2 double Capstan
9 80+50 630~800 7.5 500 10kg.m 2 6m*2 double Capstan
10 90 630~1000 7.5 800 10kg.m 2 6m*2 double Capstan/ Caterpillar
11 90+50 630~1000 7.5 800 10kg.m 2 6m*2 double Capstan/ Caterpillar
12 100 1250~1600 7.5 800 10kg.m 4 12m single Caterpillar
13 120 1600~2200 7.5 1250 10kg.m 4 12m single Caterpillar
14 150 2200~3150 7.5 1600 10kg.m 4 12m single Caterpillar
NO Capstan / Caterpillar Accumulator Take up Line Length
Power Power Bobbin Power
(KW) (kg.f) Dia. (kw)
(mm) (m)
1 Capstan 2.2 Φ375 Φ180 0.75 300~400 2.2 12~15m
2 Capstan 4 Φ375 Φ180~300 0.75~1.5 400~630 4 20~28m
3 Capstan 4 Φ375 Φ180~300 0.75~1.5 400~630 4 20~28m
4 Capstan 4 Φ500 Φ300 1.5 630~800 4 20~35m
5 Capstan 4 Φ500 Φ300~420 1.5 630~800 4 20~35m
6 Capstan 4 Φ500 Φ300~420 1.5 630~800 4 20~35m
7 Capstan 4 Φ630 Φ420 1.5 630~1000 4 25~38m
8 Capstan 4 Φ630 Φ420 1.5 630~1000 4 25~38m
9 Capstan 4 Φ630 Φ420 1.5 630~1000 4 25~38m
10 Capstan/ Caterpillar 5.6 Φ630 Φ420~800 1.5/3.7 800~1250 5.5 28~40m
11 Capstan/ Caterpillar 5.6 Φ630 Φ420~800 1.5/3.7 800~1250 5.5 28~40m
12 Caterpillar 5.6 1250~2200 5.5 32~55m
13 Caterpillar 5.6 1600~2500 5.5 32~55m
14 Caterpillar 5.6 2200~3150 5.5 32~55m


0.5 Mm2 Copper Wire And Cable Extrusion Machine With Mitsubishi Belt
